How to Optimize Table Rules with Matrix Rate Magento 2 Shipping?

• Understanding Magento 2 Matrix Rate Shipping

• Matrix Rate Integration with Magento 2: Free Shipping Fees and Promotions

• 6 Advanced Features of Matrix Rate Shipping in Magento 2

• Strategies to Customize Shipping Rates Based on Product Quantity

• 6 Benefits of Using the Shipping Extension for Magento 2 Matrix Rate Variants

• Matrix Rate Examples: Calculating Shipping Rules Based on Various Shipping Rates

• How to Set Up Matrix Shipping Rates Based on Shipping State/Region-Based Filtering?

• Matrixrate Shipping Extension: Multiple Rate Destination Filtering

• 2 Methods to Enable Logging to Allow Free Shipping for Matrix Rate and Product Rate

• Matrix Filtering Rates Based on the Combination of Postal Codes and ZIP Codes

• 4 Steps to Adjust Shipping Rates According to Memory Limits and Matrix Rates

• How to Calculate the Shipping Rates Based on the Matrix CSV Import/Export?

• 8 Steps to Troubleshoot Default Magento 2 Shipping Methods Using Matrix Rates

• Matrix Rate Best Practices for Creating Shipping Rates in Your Magento 2 Store

• The Future of Magento 2 Table Rates Based on Shipping Locations and Matrix Rates

• FAQs

• Summary

Understanding Magento 2 Matrix Rate Shipping

1. Core Functionality

The shipping matrix helps merchants set custom shipping rates based on factors like:

• Product weight and quantity
• Shipping destinations
• Order totals
• Customer groups

2. Advanced Rate Configuration

Store owners can implement shipping rules through a CSV file uploaded to the admin panel. This matrix rate shipping method supports the following:

Rate Type	Application
Flat Rate	Fixed pricing for specific conditions
Tiered Rates	Variable pricing based on order value
Location-Based	Different rates for various shipping destinations

3. Automated Calculations

The Magento 2 Matrix Rate extension calculates shipping costs based on predefined rules. When customers place orders, the system instantly processes:

• Weight-based calculations
• Location-specific rates
• Order value adjustments

4. Multiple Shipping Options

The shipping matrix rates in Magento 2 support various delivery methods, including:

• Ground shipping
• Express delivery
• Free shipping promotions

Matrix Rate Integration with Magento 2: Free Shipping Fees and Promotions

Component	Features	Implementation Details
Basic Integration	- Automatic rate calculation - Minimum order thresholds - Cart rule compatibility	Configure through Magento admin panel with matrix shipping extension.
Promotional Rules	- Conditional free shipping - Customer group targeting - Time-based promotions	Set up via cart price rules with matrix rate support.
Rate Calculations	- Weight-based computation - Location-specific rates - Order value adjustments	Upload through CSV with defined parameters.
Multi-Store Support	- Store-specific rules - Currency adjustments - Regional variations	Configure the per-store view in matrix shipping settings.
Handling Fees	- Percentage-based fees - Fixed amount charges - Conditional application	Set up in matrix rate extension configuration.
Customer Experience	- Clear rate display - Multiple shipping options - Transparent calculations	Visible during checkout.
Virtual Products	- Separate rate handling - Special calculations - Integration options	Configure through the matrix shipping group extension.
Automation	- Rule-based application - Dynamic rate updates - Real-time calculations	Managed through the matrix shipping rate calculator system in Magento.

6 Advanced Features of Matrix Rate Shipping in Magento 2

1. Multiple Shipping Methods Integration

The Magento shipping matrix extension enables store owners to create diverse shipping options. Store owners can add rates through a detailed CSV file upload system. They can also configure multiple table rates with different priorities. It helps them ensure the most relevant shipping method appears first.

Key points include:

Feature	Benefit
Priority Setting	Shipping method display order
Method Naming	Custom names with delivery estimates
Store View Control	Specific methods for different stores

2. Custom Rate Configuration

The matrix rate shipping extension allows precise control over shipping calculations based on:

• Product weight and quantity
• Order subtotal
• Destination locations
• Customer groups

3. Smart Rate Calculation

The Magento 2 matrix rate shipping extension offers convenient shipping calculation methods, including:

• Sum up Rates: Ideal for bundled products where each item has specific handling requirements.
• Select Maximal Rate: Useful for ensuring profitability on heavy or oversized items.
• Select Minimal Rate: Helps maintain competitiveness while covering basic shipping costs.

4. Location-Based Pricing

Store owners can implement sophisticated location-based pricing through:

• Postal code ranges
• Country-specific rates
• Regional pricing variations

5. Free Shipping Integration

Matrix rates allow you to smoothly integrate with Magento free shipping promotions by:

• Enabling conditional free shipping rules
• Supporting promotional combinations
• Allowing threshold-based free shipping

6. Advanced CSV Management

The shipping table rates extension lets you handle multiple table rates through CSV. For example, it offers:

• Bulk rate updates
• Rate export functionality
• Existing rate preservation options

Strategies to Customize Shipping Rates Based on Product Quantity

Calculation Type	Features	Implementation Details	Best Use Case
Per Item Rate	- Individual product rates - Quantity multiplier - Custom thresholds	Configure through matrix shipping extension in the admin panel.	Products with consistent shipping costs per unit
Bulk Order Rate	- Tiered pricing - Quantity range discounts - Volume-based calculations	Set up via CSV import in matrix rate settings.	Large orders with decreasing per-unit costs
Mixed Cart Calculation	- Multiple product types - Combined weight consideration - Order total integration	Define specific shipping matrix rules.	Orders with diverse Magento product types
Quantity Range Rules	- Min/max quantities - Range-based pricing - Custom thresholds	Configure in matrix rate extension.	Encouraging bulk purchases
Free Shipping Thresholds	- Minimum quantity requirements - Product-specific rules - Promotional integration	Set up through matrix shipping settings.	Marketing promotions
Custom Rate Formulas	- Percentage-based calculations - Fixed-rate additions - Hybrid pricing models	Implement via the matrix rate shipping item extension.	Complex shipping scenarios
Location-Based Quantity	- Regional quantity limits - Zone-specific pricing - Distance considerations	Configure through shipping matrix.	Geographic shipping restrictions

6 Benefits of Using the Shipping Extension for Magento 2 Matrix Rate Variants

1. Flexible Rate Configuration

The shipping matrix enables precise control through:

Feature	Benefit
Multiple Table Rates	Create unlimited shipping methods.
Location-Based Pricing	Set rates by country, region, or ZIP code.
Weight-Based Calculations	Adjust rates for heavy or lightweight items.

2. Enhanced Customer Experience

The multiple table rates shipping extension improves shopping satisfaction by:

• Displaying estimated delivery dates with each shipping method
• Offering multiple shipping options based on customer location
• Providing transparent shipping costs during checkout

3. Advanced Administrative Control

Store owners gain powerful management capabilities by:

• Uploading bulk rates through CSV files
• Setting shipping rules for specific product groups
• Configuring handling fees in percentage or fixed amounts

4. Smart Calculation Methods

The shipping module matrix offers sophisticated pricing options, such as:

• Sum up rates for multiple items.
• Select the maximal rate for premium shipping.
• Apply a minimal rate for cost-effective delivery.

5. Promotional Integration

The matrix shipping price extension allows you to change and handle the following:

• Free shipping thresholds
• Conditional discounts
• Special rates for customer groups

6. Multi-Store Management

The matrix rate shipping methods in Magento 2 provide the following:

• Store-specific shipping methods
• Currency-based rate adjustments
• Regional pricing variations

Matrix Rate Examples: Calculating Shipping Rules Based on Various Shipping Rates

Rate Type	Condition	Shipping Cost	Implementation Method
Weight-Based Matrix Rates	0-20 lbs 20.01-100 lbs >100 lbs	$8 $15 $25	Configure through matrix shipping extension with CSV upload.
Price-Based Calculations	$0-$30 $30.01-$70 >$70	$5 10% of total 8% of total	Set up via matrix rate shipping rules.
Location-Based Matrix	Domestic International Remote Areas	$10 $20 $30	Define through shipping matrix configuration.
Quantity-Based Rates	1-5 items 6-10 items >10 items	$12 $20 $25	Upload through CSV in Magento with matrix rates.
Combined Criteria	Weight >100 lbs + International Quantity >10 + Domestic	$50 $15	Configure via matrix shipping extension.
Customer Group Matrix	Retail Wholesale VIP	Standard rates 10% discount Free shipping	Set up in matrix rate settings.
Product Type Rates	Virtual Products Downloadable Physical Items	$0 $0 Standard rates	Define shipping matrix rules.
Postal Code Matrix	Urban Areas Suburban Rural	$8 $12 $15	Configure with matrix rate patterns.
Multi-Store Matrix	Store View 1 Store View 2 Store View 3	Custom rates per store	Implement via matrix shipping extension.

Note:

• Fields cannot be left empty. Weight, price, or quantity values must be specified, e.g., "0" to "10,000".

• Use an asterisk (*) to denote open-ended ranges, such as "price from" or "price to." For instance:

  • Price from (*) applies to all prices below the "price to" column.
  • Price to (*) applies to all prices above the "price from" column.
  • Using an asterisk in both columns means all prices are included.

How to Set Up Matrix Shipping Rates Based on Shipping State/Region-Based Filtering?

1. Leave an asterisk (*) in your CSV file's state/region field to include all undefined regions.

Note: The Matrix Rates extension uses a "best match" approach. If a rule matches a state or region, the system will stop searching further and apply that rule.

2. When defining rates for multiple states or regions, each state/region code must have its row in the CSV file. This rule applies even if the other Magento filters & shipping prices remain identical.

Note: This approach is similar to how table rates are configured.

3. Find the region/state codes in the directory_country_region database table. This method is optional.

Note: This table contains the complete list of region/state codes used by Magento. You can modify this table to add or remove regions, such as "military states".

4. Ensure regions are available in the cart shipping estimator dropdown. If not, download the country’s locale extension or manually define the areas if required.

Note:

• If no value is specified in the region field of the CSV, it is saved as "0" in the database.
• If a value is provided (e.g., "NSW"), it is converted into its numeric equivalent and stored in the database. When the CSV is exported, the numeric value is converted to the original state/region code.

Example:

• Empty region field → Saved as "0" in the database.
• Specified region (e.g., "NSW") → Converted to its numeric code, stored, and then exported back as "NSW."

This functionality ensures that state/region filters work during the shipping configuration process.

Matrixrate Shipping Extension: Multiple Rate Destination Filtering

Destination Level	Matrix Rate Configuration	Implementation Details	Best Practice
Country-Level Filtering	- Worldwide (*) - Single country - Multiple countries	Configure through matrix shipping extension with CSV upload.	Use the asterisk (*) for default worldwide rates.
State/Region Filtering	- All states (*) - Specific states - State groups	Set specific rates for states like "AK" and "HI" while maintaining default rates.	Create separate entries for special regions.
City-Level Matrix	- City-specific rates - Metropolitan areas - Rural zones	Define through the shipping matrix with 'city names'.	Use for metropolitan vs rural pricing.
ZIP/Postal Code	- Range-based - Pattern matching - Specific codes	Upload through CSV with matrix rate patterns.	Implement for precise location targeting.
Combined Filtering	- Country + State - State + City - Complete address	Configure via matrix shipping rules hierarchy.	Follow the best-match principle.
Search Priority	1. Full address match 2. Country/State/City 3. Country/State 4. Country only	The system automatically follows the hierarchy until a match is found.	List specific rules before general ones.
Special Cases	- Remote areas - Island destinations - International zones	Define through matrix rate shipping extension.	Create separate entries for unique locations.
Rate Calculation	- Ground shipping - Express delivery - Next-day service	Set up through shipping matrix configuration.	Maintain consistent rate structure.

2 Methods to Enable Logging to Allow Free Shipping for Matrix Rate and Product Rate

Method 1: Debug Logging via the Admin Panel

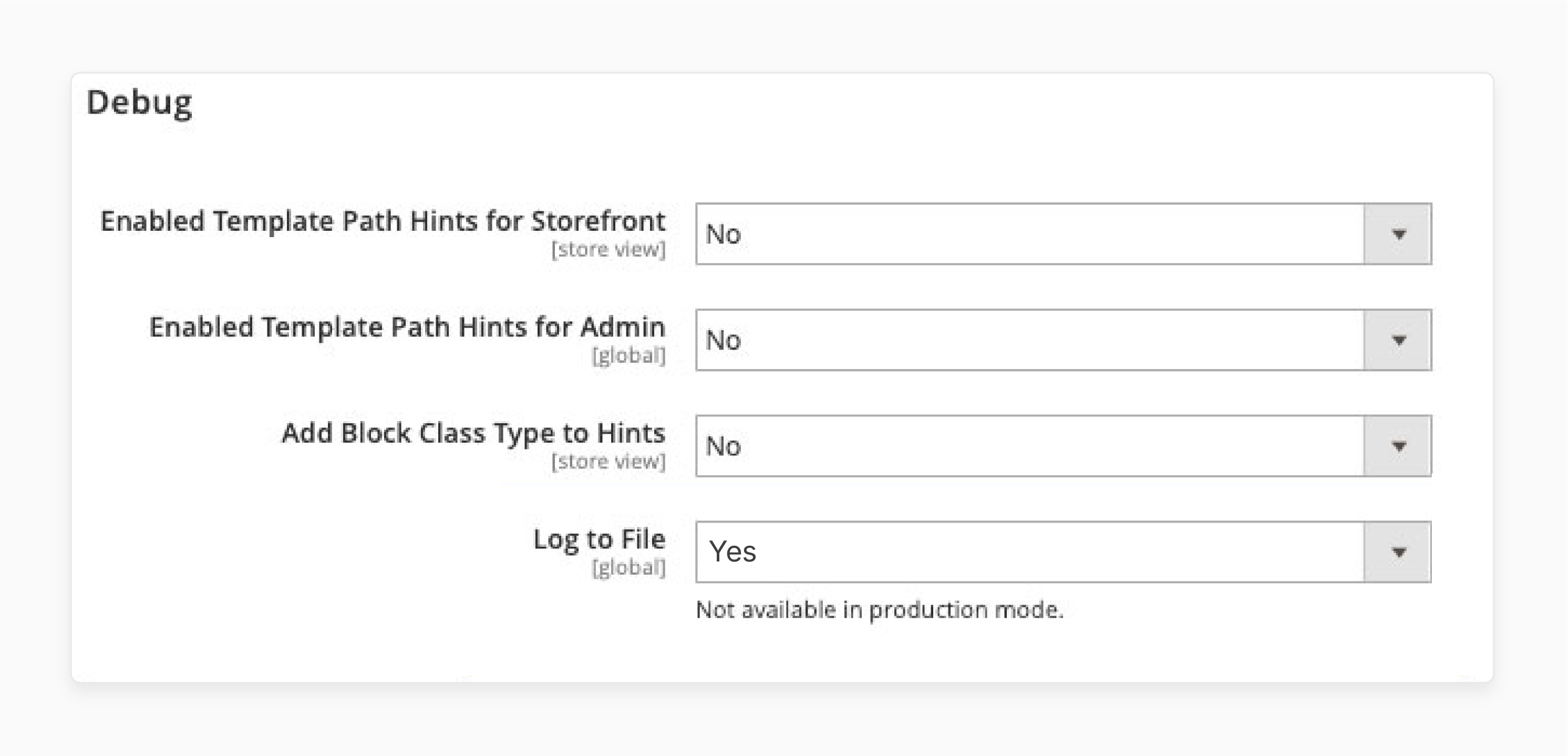

1. Navigate to Stores > Configuration > Advanced > Developer > Debug > Log to File.
2. Set 'Log to File' to "Yes".
3. Save the configuration.
4. If prompted, flush the Magento cache using the provided link.

Note:

• This method is hidden in production mode. Use it only for testing purposes.
• Logs will be written to var/log/debug.log in the Magento application directory.

Method 2: Debug Logging via the Command Line

1. Open the Magento application directory in the shell.
2. Run the following command to enable debug logging:

php bin/magento config:set dev/debug/debug_logging 1 && php bin/magento cache:flush

3. Logs will be saved to ``var/log/debug.log\.
4. To disable debug logging, use this command:

php bin/magento config:set dev/debug/debug_logging 0 && php bin/magento cache:flush

Note:

To check the current mode of your site:

1. Navigate to your Magento application directory (where index.php is located).
2. Then, run the following command in the shell:

php bin/magento deploy:mode:show

• If the output shows production, only the command line method will work.
• Otherwise, both methods can be used.

Matrix Filtering Rates Based on the Combination of Postal Codes and ZIP Codes

Filter Type	Configuration Method	Example Pattern	Use Case
Numeric Range Matrix	- Start ZIP code - End ZIP code - Weight range	3000-4000 6000-8000 9000-10000	Best for the USA and Australia shipping matrix
Pattern Matching	- % (Multiple characters) - _ (Single character) - Space handling	BT% PO14___	Ideal for UK and alphanumeric postal codes
Combined Location Matrix	- City + ZIP - State + ZIP - Country + ZIP	London + SW% NY + 100__ UK + BT%	Complex shipping matrix scenarios
Special Character Usage	- Underscore (_) - Percent (%) - Space handling	EH12___ BT% PO14 ___	UK and international postal codes
Weight-Based Matrix	- Light items - Standard weight - Heavy items	0-5kg 5-20kg >20kg	Combined with postal codes for precise rates
Service Level Matrix	- Standard delivery - Express shipping - Special handling	First Class Next Day Pallet Delivery	Service-specific postal code rules
International Matrix	- EU countries - Non-EU regions - Worldwide	FR% US% *	Global shipping matrix implementation
Special Zone Matrix	- Remote areas - Metropolitan zones - Island regions	HS% L1% BT%	Zone-specific shipping calculations

4 Steps to Adjust Shipping Rates According to Memory Limits and Matrix Rates

1. Locate the php.ini file.

Note: The file's location depends on your operating system. It is typically located at /etc/php.ini in most Linux environments. If you’re unsure, search online for specific guidance based on your system.

2. Update the following values in the php.ini file:

upload_max_filesize = 5M post_max_size = 10M

3. Increase these values as needed. For example, if your CSV file is "20MB", set both values to around "30M".

Note: The value should be in megabytes, not megabits.

4. Save the changes and restart your server for the new settings to take effect.

Note: Always create a configuration file backup before making any changes.

How to Calculate the Shipping Rates Based on the Matrix CSV Import/Export?

Component	Matrix Rate Configuration	Implementation Details
CSV File Structure	- Weight ranges - Price ranges - 9-column format	Configure through Magento 2 admin panel with proper UTF-8 encoding.
Location Fields	- Country (ISO3 code) - Region/State - City - ZIP/Postal codes	Use the asterisk (*) for undefined values.
Rate Calculation	- Condition from/to - Shipping price - Delivery type	Set "weight", "price", or "quantity-based" conditions.
Import Process	- Store view selection - CSV file upload - Rate validation	Select 'main website' or 'specific store view' before importing.
Export Options	- Direct database export - phpMyAdmin export - Template download	Export existing matrix rates for modification or backup.
Best Match Logic	- Specific matches first - Wildcard fallback - Priority handling	The system matches most specific rules before general ones.
Rate Calculation Rules	- Best match principle - Wildcard support - Priority handling	The system matches the most specific rules and then returns to general ones.
Data Validation	- Format checking - Code verification - Rate consistency	Validates country codes, regions, and rate calculations.
Multiple Store Support	- Website-specific rates - Store view configuration - Currency handling	Configure different rates for each store view.
Rate Management	- Bulk updates - Rate modification - Method prioritization	Manage through CSV for efficient rate updates.
Shipping Matrix Integration	- Method activation - Rate calculation - Frontend display	Efficient integration with the checkout process.

8 Steps to Troubleshoot Default Magento 2 Shipping Methods Using Matrix Rates

1. CSV Configuration Issues

The matrix rate shipping extension has CSV-related problems that prevent proper rate calculations. Verify that your CSV file is formatted with UTF-8 encoding and saved in Windows format. Then, check the matrixrate database table to ensure a successful data population.

2. Rate Calculation Problems

Matrix rate shipping calculations may fail when product weights are set to "0." Always set a minimum weight of "0.001" for products. The shipping matrix uses "greater than" logic for weight ranges. So, ensure your CSV rules account for this calculation method.

3. Display Configuration

Enable "Show Method if Not Applicable" when no shipping methods appear during checkout. This setting reveals error messages that help identify rate calculation issues. You can configure custom error messages to provide clear feedback to customers.

4. Cache Management

Matrix rate shipping often requires proper cache management. Clear these directories when updating rates through:

• var/view_preprocessed
• pub/static/frontend
• pub/static/adminhtml
• var/cache

5. Installation Troubleshooting

Common matrix rate installation issues stem from incorrect file permissions/missing database tables. Ensure proper file ownership and permissions in Magento. Verify that all required tables are created during installation.

6. Cart Integration

The shipping matrix relies on accurate product data. Ensure all products have:

• Valid weights configured
• Proper quantity settings
• Correct price configurations

7. Store View Configuration

For multi-store setups, matrix rate shipping requires proper store view configuration. Each store view can have unique:

• Shipping methods
• Currency settings
• Location-based rules

8. Performance Optimization

Optimize your matrix rate configuration by:

• Minimizing CSV file size
• Optimizing shipping rules
• Configuring proper server settings for file uploads

Matrix Rate Best Practices for Creating Shipping Rates in Your Magento 2 Store

Category	Best Practice	Implementation Details
Rate Structure	- Tiered pricing strategy - Volume-based discounts - Weight-based calculations	Configure through the matrix shipping extension with CSV imports for bulk updates.
Location Management	- Country-specific rates - Region-based pricing - ZIP code targeting	Set up postal code patterns and regional variations in the shipping matrix.
Customer Experience	- Clear delivery estimates - Multiple shipping options - Transparent calculations	Display estimated delivery days in method names with the {day} variable.
Calculation Methods	- Sum up rates - Select a maximal rate - Select a minimal rate	Choose an appropriate calculation method based on the business model.
Product Handling	- Virtual product support - Downloadable items - Mixed cart calculations	Configure separate handling rules for different product types.
Promotional Integration	- Free shipping thresholds - Bulk order discounts - Magento customer group pricing	Set up conditional free shipping and promotional rates.
Technical Setup	- CSV file management - Rate table organization - Priority settings	Implement proper rate hierarchy and data structure.
Performance Optimization	- Efficient rate calculations - Quick checkout process - Real-time updates	Optimize rate calculations for a faster checkout experience.
Advanced Features	- Volumetric weight support - Handling fees - Multi-store compatibility	Configure advanced features through matrix shipping extension.

The Future of Magento 2 Table Rates Based on Shipping Locations and Matrix Rates

Component	Current Features	Future Trends
Rate Calculation Methods	- Weight-based computation - Location-specific rates - Order value adjustments	- AI-powered dynamic pricing - Real-time rate optimization - Predictive shipping costs
Location Intelligence	- Country/region targeting - ZIP code patterns - City-specific rates	- Hyper-local delivery zones - Smart geofencing - Distance-based calculations
Integration Capabilities	- CSV import/export - Multiple store views - Customer group targeting	- API-first architecture - Magento headless commerce support - Cross-platform synchronization
Automation Features	- Rule-based application - Dynamic updates - Real-time calculations	- Machine learning optimization - Automated rate adjustments - Smart carrier selection
Customer Experience	- Estimated delivery dates - Multiple shipping options - Transparent calculations	- AR shipping preview - Voice-activated shipping estimates - Social commerce integration
Rate Management	- Matrix rate configuration - Handling fee settings - Promotional integration	- Blockchain-based verification - Carbon footprint optimization - Dynamic surge pricing
Analytics and Reporting	- Basic rate performance - Shipping cost analysis - Customer behavior tracking	- Advanced analytics dashboard - Predictive modeling - Real-time optimization
Mobile Optimization	- Responsive design - Basic mobile support - Touch-friendly interface	- Native app integration - Mobile-first experience - Progressive web apps

FAQs

1. How does the matrix rates method benefit a Magento 2 store?

The matrix rates method simplifies managing different shipping methods. It allows customizing rates based on product, location, and order specifics.

2. What different shipping methods are supported by Magento Matrix Rate?

Magento matrix rates support table rates, flat rates, and free shipping. Each method offers your customers multiple shipping options.

3. How can matrix rules help me calculate shipping rates in Magento?

Matrix rates are calculated based on product attributes and conditions. The method also considers taxes when calculating shipping costs.

4. Can a Magento store handle matrix rates for different regions?

Yes. Magento's matrix allows you to configure rates based on the product. For example, you can customize shipping rates for different regions and criteria.

5. How can you offer multiple shipping options to your customers?

Multiple shipping options can be configured in Magento shipping methods. These include free shipping, flat rates, and table rate shipping.

6. What are the method codes for MatrixRates?

MatrixRate method codes are stored in the method_code column within the orders table. These codes are dynamically generated using the pk (primary key) column from the matrixrate database table. The format is: matrixrate_matrixrate_pk. For example, matrixrate_matrixrate_15. Each "pk value" is unique to its row and changes with every new CSV upload as the pk value is updated.

7. Does Magento support many shipping rules for diverse needs?

Yes, Magento supports many shipping options and matrix rules. It allows customized rates for different products, regions, and order values.

Summary

The Matrix Rate Magento 2 extension allows you to set flexible shipping rules based on various factors, such as weight, destination, and product type. This shipping matrix rates extension enables store owners to:

• Support free shipping and customized options for better customer satisfaction.
• Ensure a better experience for both store admins and customers.
• Provide a versatile solution for managing custom shipping rates.
• Configure multiple table rates based on weight, price, or destination.
• Use the CSV file's Country and Region columns to differentiate rates.

Explore Magento hosting services to simplify shipping methods with customizable matrix rate rules.
