Magento 2 Slider Widget Fundamentals, Conflicts, and Solutions

• What is a Magento 2 Slider Widget?

• Explaining the Functioning of a Slider Widget in Magento 2

• Critical Conflicts Associated With Magento 2 Slider Widget

• Troubleshooting Identified Magento 2 Slider Widget Conflicts

• 5 Design and Usability Principles for Magento 2 Slider Widget Configuration

• FAQs

• Summary

What is a Magento 2 Slider Widget?

“A Magento 2 Slider Widget is an admin interface component. The tool lets users add dynamic sliders onto store pages.”

Magento 2 Open Source lacks this widget out of the box. Third-party extensions or specific themes provide this feature.

Adobe Commerce features a similar slider element in its Page Builder. Admins can configure slides with:

• Images

• Text

• Links

• Behaviors

Users can place the slider on front-end pages without writing any code.

The widget mechanism processes admin configurations using PHP blocks. PHTML templates generate the HTML structure for the selected slider. JavaScript libraries manage slide animation plus user interaction. CSS provides styling for a cohesive visual design. It simplifies rotating content management for store administrators.

Explaining the Functioning of a Slider Widget in Magento 2

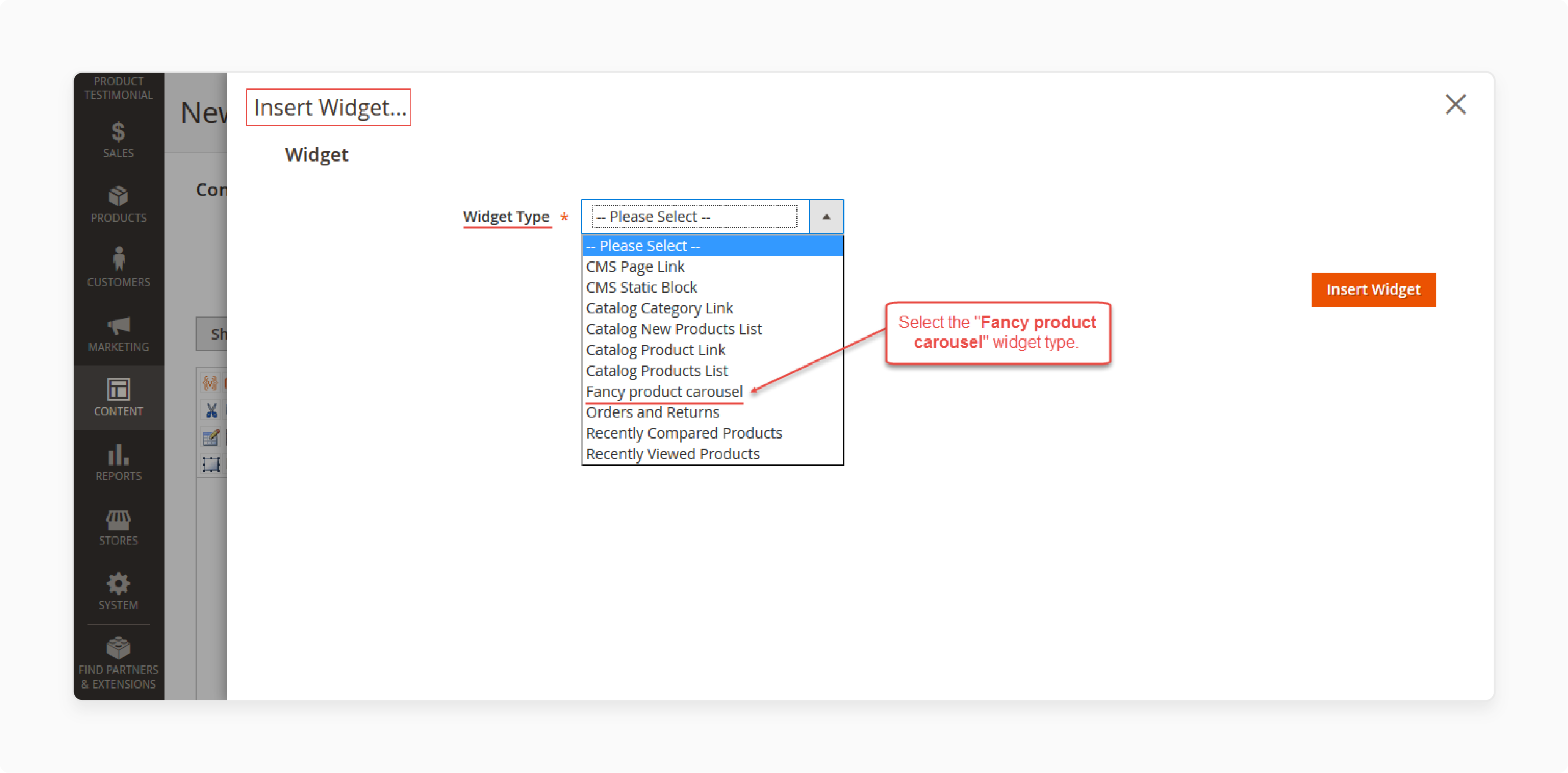

1. Admin Configuration and Widget Selection

• Administrators can access the widget through Magento's CMS or install third-party modules. They then choose the desired slider widget from the available types.

• The system displays a configuration form based on widget parameters. The form allows input for all slider setting data values.

• Users configure individual slides, adding images, text, and links. They also set behavior options such as autoplay and transition speed.

• Layout update instructions determine the slider's frontend display location. Admins select target pages and layout containers for placement.

• The interface empowers non-technical users to manage slider content displays. Developers define configurable options presented within this admin interface screen.

2. Widget Declaration via XML (widget.xml)

• Developers register the custom widget using a module's widget.xml file. The file makes Magento aware of the new widget component type.

• The XML specifies the widget's internal code and display name label. It lists all parameters as fields in admin configuration forms.

• Each parameter defines its data type, source model, and renderer. It controls how each admin configuration field appears built.

• The declaration connects widget configuration to a PHP block class file. The designated block class handles server-side logic execution process steps.

• The widget.xml file dictates the structural layout design of the admin interface. It bridges frontend configuration inputs to backend processing logic paths.

3. Backend Data Processing (Block Class)

• Magento executes the defined PHP block class during page rendering. The system instantiates this block for the used widget instance.

• The class retrieves the widget's saved configuration values stored data. It accesses settings saved by the administrator configuration process.

• The block processes this data, loading extra model information first. It prepares slide details for template variable injection use cases.

• It can specify essential frontend assets like CSS or JavaScript. The block maintains these resource loads with the widget output.

• The block transmits prepared data arrays to its PHTML template file. The data populates the slider's frontend HTML structure code.

4. Frontend Structure Generation (PHTML Template)

• A .phtml template file contains the slider's base HTML markup structure. It includes divs, image tags, and text element structures.

• PHP variables received from the block class populate the placeholders. It allows HTML generation based on saved admin configuration values.

• The template incorporates CSS classes or used data attribute selectors. Client-side JavaScript uses these hooks for targeting and initialization.

• It must output the HTML structure the JS library expects. Markup confirms the JavaScript library functions.

• Magento renders this template file when building the web page structure. The final page source includes the widget's generated HTML output.

5. Client-Side Interaction and Styling (JS & CSS)

• JavaScript files initialize the slider library in the browser engine. These scripts make use of RequireJS or modern JavaScript module patterns.

• The JavaScript targets the slider's rendered HTML using CSS selectors. It applies the library's functions using widget configuration data.

• Configuration settings pass via HTML data attributes or JSON script blocks. The JavaScript reads these options, customizing the slider's runtime behavior.

• LESS or CSS files provide rules for visual presentation styling appearance. These styles target slider elements using classes from the PHTML template.

• CSS controls the slider's appearance, layout, and design responsiveness. JavaScript manages interactive elements and slide transition animations.

Critical Conflicts Associated With Magento 2 Slider Widget

1. Performance and SEO vs. Visual Appeal

• Visual sliders impact site speed and performance. It clashes with desires for website visual appeal.

• Developers fight poor Core Web Vitals scores. Heavy sliders with large images increase LCP plus TBT.

• Optimization needs effort for lazy loading JavaScript execution. Responsiveness without layout shifts adds development time.

• Technical needs conflict with slider use requests. Balancing performance aesthetics presents development challenges.

• Stakeholders request sliders unaware of performance trade-offs. Developers educate about negative SEO impacts.

2. Accessibility Compliance vs. Development Constraints

• Accessibility standards conflict with development speed project awareness. Making content accessible takes time testing procedures.

• Using accessible sliders needs applying ARIA attribute knowledge. Keyboard navigation support focus management needs code implementation.

• Providing user controls like pause buttons adds interaction complexity. Finding compliant third-party extensions or themes proves difficult.

• Development teams add accessibility testing to established workflows. The work impacts project timelines and budget constraints.

• Ignoring accessibility creates legal risks and customer exclusion factors. Developers advocate for inclusive design principle usage.

3. Marketing Intent vs. Actual User Engagement

• Marketing creates multi-slide content conveying key brand messages. User behavior shows visitors ignore sliders past slide one.

• Developers build components showing user interaction data. Analytics confirm that users ignore slides past the first one.

• The discrepancy makes using sliders questionable development work. Time investment contrasts with the feature's user impact.

• Focusing on the first slide content becomes a development recommendation. Focusing development efforts on other elements is better work.

• Developers use tracking to measure slide interaction effectiveness levels. Data helps justify alternative content presentation methods.

4. Content Convenience vs. Technical Debt Increase

• Widget use creates technical debt system dependencies. Users update content, increasing maintenance overhead.

• Widgets introduce third-party JavaScript library dependencies, creating update issues. Theme-specific sliders complicate platform upgrades and redesign projects.

• Maintaining compatibility during Magento upgrades becomes a development task. JavaScript conflicts increase with extensions' custom code uses.

• Developers manage security updates for underlying slider libraries. Ongoing maintenance adds to the total ownership cost.

• Choosing modular extensions reduces technical problems. Evaluating dependencies before implementation prevents integration issues.

5. Cross-Device Design vs. Mobile Usability Issues

• Sliders designed for desktop interaction fail on mobile devices. Mobile user experience suffers from touch interaction uses.

• Creating responsive sliders presents cross-device testing challenges. Images need different crops, and text overlays need readability checks.

• Navigation controls need size for mobile tap targets. Swipe gestures must avoid conflict with native page scrolling behavior.

• Proper design alignment across devices needs CSS JavaScript adjustments. Developers spend time debugging mobile rendering interaction bugs.

• Testing on mobile hardware identifies usability problems. Emulators cannot replicate touch interaction nuances.

Troubleshooting Identified Magento 2 Slider Widget Conflicts

1. Addressing Performance and SEO Conflict Issues

• Measure slider impact using Lighthouse PageSpeed Insights tools. Analyze network requests, image sizes, and JavaScript load times.

• Optimize image assets using modern formats like WebP and AVIF. For responsiveness, use image attributes like srcset and sizes.

• Use lazy loading for image slider JavaScript files. Load assets like slider-init.js only when nearing the browser viewport.

• Optimize code execution using script attributes async and defer. Minify bundle JS and CSS and check library weight load CSS as per conditions.

• Reduce slider complexity to limit the total number of slides. Simplify transition animations, avoiding complex processor-intensive effects.

2. Resolving Accessibility Versus Development Speed Conflict

• Audit existing sliders, perform keyboard testing, and check tab order and focus. Use screen readers and automated tools to find accessibility issues.

• Use ARIA roles like the region tabpanel button for elements. Make sure aria-label provides descriptive context for screen reader users.

• Confirm that operable controls focus on elements and allow activation via keyboard keys. Provide visible pause buttons to respect the prefers-reduced-motion media query set.

• Focus on accessibility testing to check development QA workflows. Divide the time budget for thorough accessibility validation testing.

• Provide content alternatives to offer slider information via static page content. Make sure that the users access critical data without needing slider interaction.

3. Bridging Marketing Goals and User Behavior Gap

• Track user interactions using event tracking for slider element clicks. Use the slide view to track navigation control usage and engagement metrics.

• Analyze tracking data to determine user interaction beyond the first slide. Identify which slide content receives user engagement results.

• Focus on primary content, placing key messages and CTAs on the first slide. Treat the later slides as supplementary, less critical information.

• Simplify slider focus, reducing total slide count and improving user clarity. Confirm that each slide presents one clear message CTA goal.

• A/B test slider alternatives comparing performance against static hero images. Measure conversion engagement rates, determining the optimal content presentation method.

4. Managing Convenience Versus Technical Debt Conflict

• Audit slider dependencies identifying the extension theme providing functionality. Check JS library like SwiperJS compatibility maintenance status.

• Replacing theme widgets with modular solutions decouples slider usage. Use standard JS libraries to reduce theme lock-in issues.

• Scheduling regular extension theme updates maintains slider components. Applying necessary patches helps track security advisories.

• Vet new slider solutions evaluating dependencies update history support chosen. Check configuration files like widget.xml for clarity standards.

• Document slider setup recording usage details dependencies configurations used. Check template paths like view/frontend/templates/widget/slider.phtml for documentation needs.

5. Fixing Cross-Device Versus Mobile Experience Conflict

• Test sliders on mobile using real devices for usability checks. Check the performance of touch interactions and layout readability on mobile networks.

• Adjust responsive design using CSS media queries, adapting slider appearance. Use the HTML <picture> element for different image crop sizes.

• Load sliders as per conditions, using layout XML JavaScript for mobile versions. Consider hiding sliders on small viewports, hindering user experience.

• Simplify mobile content, adapting complexity for smaller mobile screen sizes. Use fewer slides, shorter text, and clearer CTAs for mobile needs.

• Gather user feedback via mobile usability testing to track user friction points. Use survey feedback tools to collect mobile experience data.

5 Design and Usability Principles for Magento 2 Slider Widget Configuration

1. Optimize Assets and Limit Complexity

Aspect	Developer Action / Consideration
Image Optimization	Use the server-side image to resize validation upon admin upload actions. Also, use frontend HTML attributes srcset sizes for image delivery.
Slide Count Limit	Tell clients to set low default slide limit configuration values found. Explain performance costs associated with the use of excessive slide numbers.
Transition Choice	Configure the JS library like SwiperJS to select simple slide fade effects. Avoid 3D transforms and complex animation sequences that are expensive to compute.
Asset Loading	Make sure slider-init.js CSS assets load using layout XML updates. Use lazy loading for images offscreen slider instances using JavaScript methods.

2. Adjust Touch Interaction and Readability

Aspect	Developer Action / Consideration
Device Testing	Test slider functionality on actual mobile hardware devices. Supplement testing using browser developer tools and available mobile emulation modes.
Tap Target Sizing	Apply CSS to confirm navigation controls and pagination dots meet the least tap size. Use adequate padding spacing to prevent user interaction errors.
Text Legibility	Use responsive CSS to adjust text overlay font sizes, line heights, and viewport. Verify that the color contrast between text background images is as intended.
Swipe vs. Scroll Test	Check JavaScript event handling to prevent conflicts between swiping and scrolling actions. Use CSS touch-action property managing browser touch behaviors.

3. Structure for User Attention

Aspect	Developer Action / Consideration
Focus on the First Slide	Structure backend Block/Widget/Slider.php logic to favor first slide content. Explain user behavior data showing limited interaction beyond initial views.
Single Goal Focus	Design slider.phtml templates to accommodate clear, distinct content areas per slide. Avoid complex layouts supporting several conflicting messages.
Clear CTAs	Make sure Call-to-Action buttons are prominent elements within the template files. Use semantic HTML button <a> tags for interactive elements.
Concise Content	Tell content creators to use brief headlines with minimal supporting text. Optimize template structure to avoid excessive DOM nodes per individual slide.

4. Provide Alternatives and User Control

Aspect	Developer Action / Consideration
Text Alternatives	Make sure image upload fields need non-empty HTML alt attribute values. Provide meaningful descriptions to convey image content context for screen readers.
User Control (Pause)	Use visible keyboard-accessible pause-stop controls for auto-playing sliders. Respect the CSS @media (prefers-reduced-motion: reduce) query.
Visible Navigation	Style navigation controls to confirm visibility and color contrast ratios. Apply ARIA attributes aria-controls aria-label to enhance control semantics.
Keyboard Navigation	Confirm interactive slider elements are focusable and navigable using the keyboard alone. Prevent keyboard traps to guarantee logical focus order sequence usage.

5. Maintain Visual Cohesion and Brand Consistency

Aspect	Developer Action / Consideration
Brand Element Usage	Use the Magento theme's CSS and LESS variables styling slider elements. Provide configuration options allowing admin users to select predefined brand color palettes used.
Consistent Styling	Apply consistent CSS styling for fonts to space borders visual elements. Make sure the slider appearance aligns with the website design language system.
Animation Timing	Expose JavaScript library configuration options to control slide duration transition speed. Recommend sensible default values to avoid jarring, slow animations.
Contextual Design	Design slider components to match the website's aesthetic style choices. Avoid using visual styles clashing with the theme's design patterns.

FAQs

1. Why does my slider widget slow the website?

Large images increase page load times. Complex JavaScript libraries add processing overhead. Too many slides need several resource downloads. Poor code in extensions or themes causes bottlenecks.

2. Are sliders effective on mobile devices?

Sliders present mobile usability challenges. Small touch targets make navigation difficult. Text overlays become unreadable on smaller screens. Swipe gestures conflict with page scrolling, causing frustration.

3. How can I make my slider widget accessible?

Use descriptive HTML alt text for slider images. Use ARIA attributes defining role states. Provide keyboard navigation support for interactive controls. Include visible pause or stop buttons for animations.

4. Is having a slider on my homepage a must-have?

Sliders take up screen space and can limit user engagement. Users often develop banner blindness, leading them to ignore rotating content. Static hero images or content grids offer alternatives. A/B test sliders against static content to measure conversion impact.

5. What happens if I uninstall the slider extension?

Removing the extension breaks dependent sliders. Widget content disappears from frontend pages. Rebuilding slider functionality requires development effort. Choose slider solutions considering maintenance upgrade implications.

Summary

Magento 2 slider widgets offer dynamic content presentation via admin configuration. You can use it via extensions, themes, or custom development. Sliders introduce conflicts impacting performance, accessibility, and usability. Careful configuration and design principles mitigate these drawbacks:

1. Focus on performance to optimize images, limiting slide count. Choose simple transitions to avoid complex animation effects.

2. Maintain mobile usability to test touch targets' text readability. Adapt slider design behavior for smaller screen sizes.

3. Use basic accessibility to provide text alternatives and user controls. Confirm keyboard navigation screen reader compatibility features.

4. Match slider styles and brand design to maintain visual consistency. Make sure that the slider's appearance aligns with the website's total aesthetic.

5. Balance visual appeal against performance accessibility user experience goals. Track user engagement data validating slider effectiveness justification.
